Nidec Graessner – The Gear Company
Spiral, Hypoid & Helical bevel gearboxs
EvoGear
The all-rounder amongst servo right-angle gearboxes
EvoGear confidently combines all the advantages of a high-performance gearbox and is aimed at all those who set value on a high ratio variety, a shapely and easy-to-clean design.
dynagear economy1The EvoGear is the optimum solution for allmost all applications and offers the user unique advantages:
- 4 configurations – including planetary gear at the output
- 17 transmission ratios
- The compact and stable design ensures maximum performance with small dimensions and low weight
- Due to the lifetime lubrication, the gearboxes are practically maintenance-free under normal operating conditions
- Energy-saving due to high efficiency of up to 96%
- Precise due to low backlash of <5 arcmin
- Variable motor attachment via lantern and coupling
ONLINE ENQUIRY

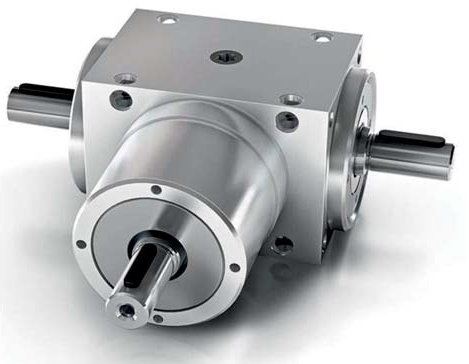

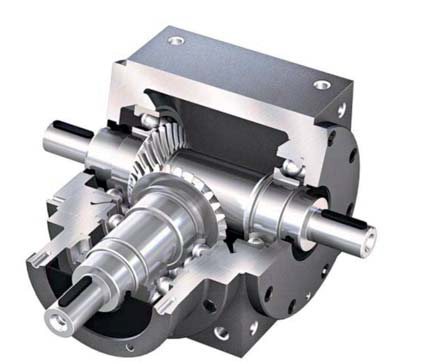

The High Performance Bevel Gearbox
- Highest torque within small gearbox size
- For highest input speeds
- Ratios i = 1:1 up to 5:1
- Torque up to 7000 Nm
- Output via solid and hollow shaft
- Motor mounting either directly or via coupling and lantern
Version P – The standard bevel gearbox
Version X – For highest torques
Version HS – For highest input speed
The Revolution Among Miniature Gears
Miniature gear for maximum precision low backlash and high transmission accuracy case- hardened bevel gear tooth system friction-locked shaft-and-bevel-gear fit energy-efficient through high level of efficiency of 98% extremely light- weight aluminium housing maintenance free through synthetic grease
